Thermometers

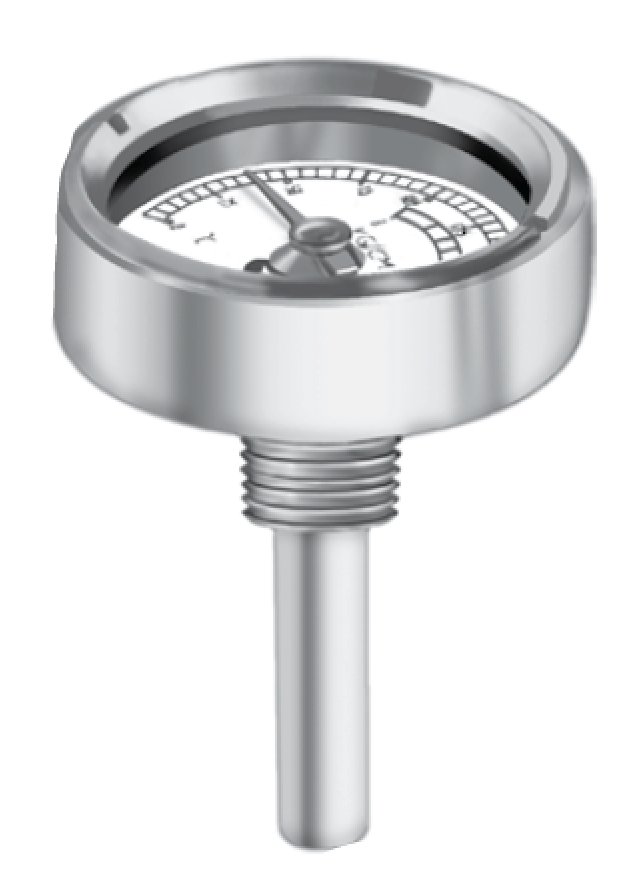

The Velan thermometer is actuated by a bimetallic helix shaped strip, which is enclosed in stainless steel.  Its strong design will withstand adverse conditions and combines reliability with accuracy. The thermometer can be recalibrated on the spot and can be supplied with the following scales and ranges of operation:

316 Stainless Steel

32°F – 572°F (0°C – 300°C)
Case diameter: 1 ¾” (45 mm)
Length: 1 ½” (38 mm)
Screwed Connection: ¼” NPT

32°F – 932°F (0°C – 500°C)
Case diameter: 2 ¾” (70 mm)
Length: 3 ¾” (95 mm)

Screwed Connection: ¼” NPT
