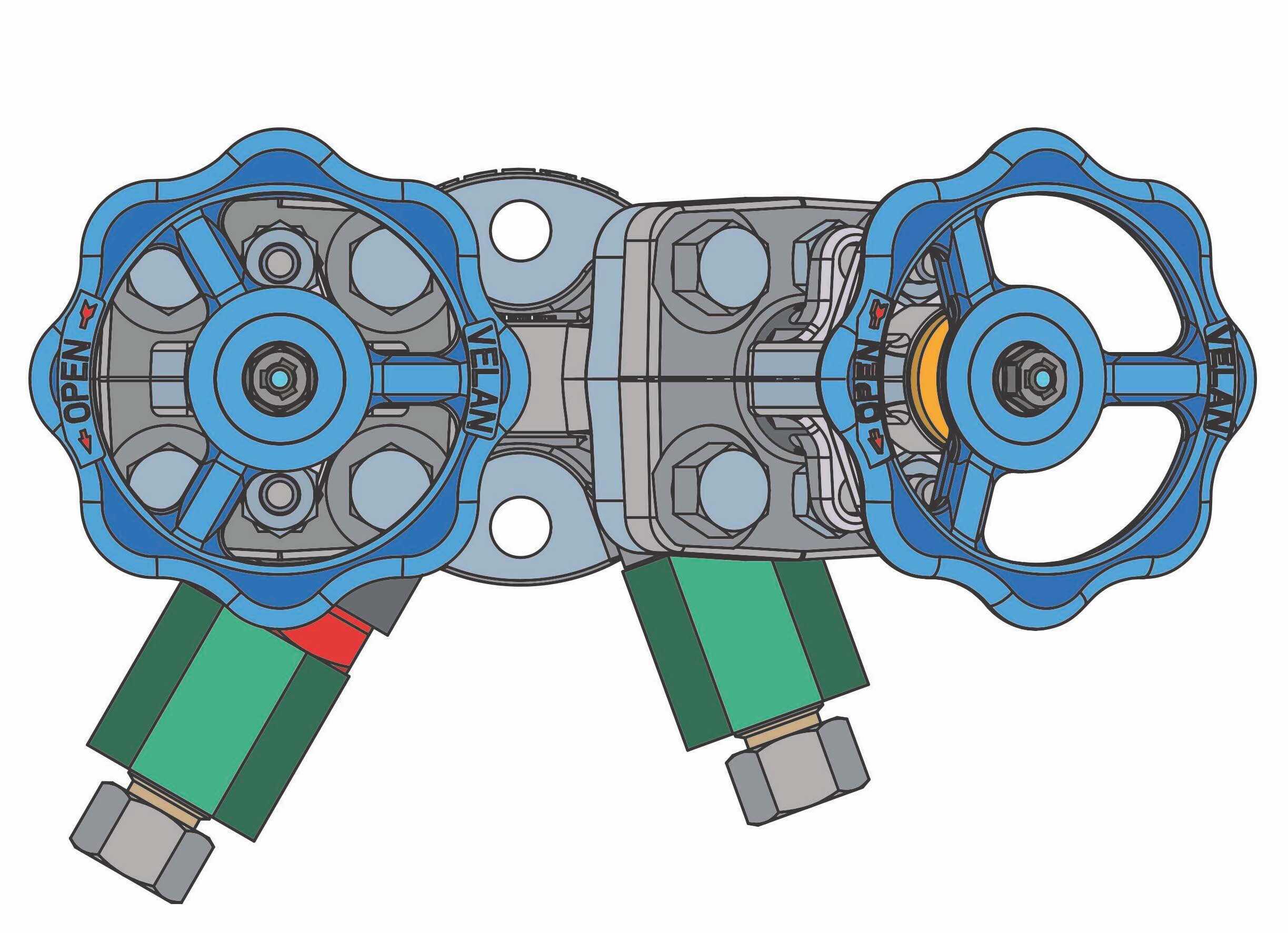

Velan Trap Connector Station (VTCS)
End Connection Types
Screwed
Socket Weld
Flanged
End Connection Sizes
1/2”
3/4”
Body Materials
WCB Cast Carbon Steel
CF8M Cast Stainless Steel
Features and Benefits
Designed and tested to ASME B16.34
VTCS is available in carbon steel body material. This allows welding to A106 piping material without the use of dissimilar metal welding procedures
Employs the use of globe valves for all isolation points.
Rated to ASME CLASS 800
Torque-seated operation provides positive shutoff despite erosion and mechanical wear over time
Available as standard with solid Stellite 6 disc, Stellite 6 seat, and 13 Cr 410 stainless stem
100% of VTCS undergo hydrostatic shell testing, seat test and backseat test in accordance with API 598
The outside stem and yoke design of the VTCS globe valves provides exceptional strength for the stem and valve drive mechanism
The horizontal valve orientation of the VTCS reduces vertical clearance requirements of condensate manifold branch lines by up to 6” per unit
